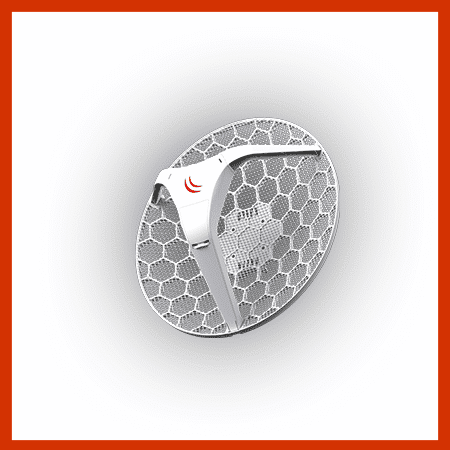

LHG XL 5 ac

CAD$143.00

Dual chain Long Range 27dBi 5GHz CPE/Point-to-Point Integrated Antenna with AC support and Gigabit Ethernet.

In stock

SKU: RBLHGG-5acD-XL Category:

Description

The LHG XL 5 ac is Long Range 5GHz 802.11ac wireless device with an integrated dual polarization 27 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

Specifications

Details
Product code RBLHGG-5acD-XL
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions Ø 550 x 245 mm;
License level 3
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C .. +70°C

Powering

Details
Max Power consumption 8W
PoE in Passive PoE
PoE in input Voltage 10-30 V
Number of DC inputs 1 (PoE-IN)

Wireless

Details
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11ac
Antenna gain dBi for 5 GHz 27
Wireless 5 GHz chip model IPQ-4018

Ethernet

Details
10/100/1000 Ethernet ports 1

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 25 -96
54MBit/s 21 -80
MCS0 25 -96
MCS7 20 -75
MCS9 18 -70

Powering

Details
Max Power consumption 5W
PoE in Passive PoE
PoE in input Voltage 10-30 V
Number of DC inputs 1 (PoE-IN)

Wireless

Details
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 21
Wireless 2.4 GHz chip model QCA9533

Ethernet

Details
10/100 Ethernet ports 1

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -93
6MBit/s 25 -94
54MBit/s 22 -80
MCS0 25 -94
MCS7 21 -75

Additional information

Weight 3 kg
Dimensions 60 × 60 × 16 cm
