The rb1100 dude edition boasts an Annapurna Alpine AL21400 CPU with four Cortex A15 cores, each clocked at 1.4GHz, achieving a maximum throughput of up to 7.5Gbps. With IPsec hardware acceleration, it surpasses any previous RouterBOARD device in speed, reaching up to 2.2Gbps with AES128 encryption.

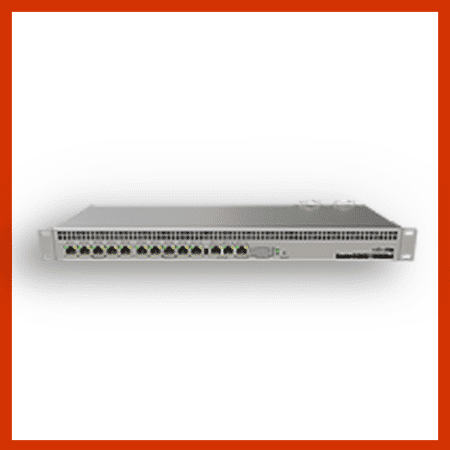

This unit is equipped with a 1U rackmount case, 13 Gigabit Ethernet ports, an RS232 serial port, and dual redundant power supplies supporting -48v DC telecom power and 802.3at/af standards. Additionally, it features multiple high-speed storage connectors (two SATA and two M.2) for use with a Dude database, proxy cache, or other storage-intensive applications. The rb1100 dude edition also includes a pre-installed 60GB M.2 drive.
Product specifications
| Details | |
|---|---|
| Product code | RB1100Dx4 |
| CPU nominal frequency | 1.4 GHz |
| CPU core count | 4 |
| Size of RAM | 1 GB |
| 10/100/1000 Ethernet ports | 13 |
| Power Jack | 2 |
| PoE in | 802.3af/at |
| Supported input voltage | 20 V – 57 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 444 x 148 x 47 mm |
| Operating System | RouterOS |
| License level | 6 |
| Current Monitor | Yes |
| CPU | AL21400-1400-A0-E-1AN-8-C |
| Max Power consumption | 25W |
| Serial port | RS232 |
| Storage type | NAND |
| Storage size | 128 MB |
| CPU Threads count | 4 |
| SATA ports | 2x SATA3 |
| M.2 slots | 2 |
| Extended storage | 60GB M.2 SSD included |
