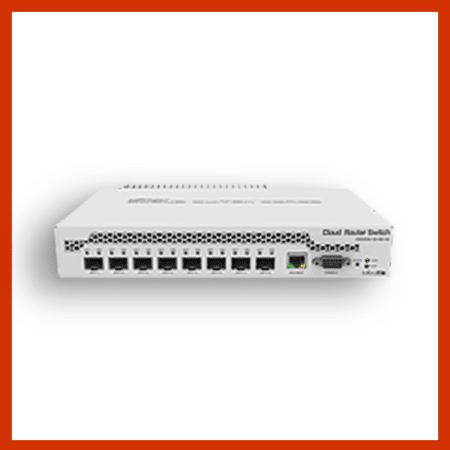

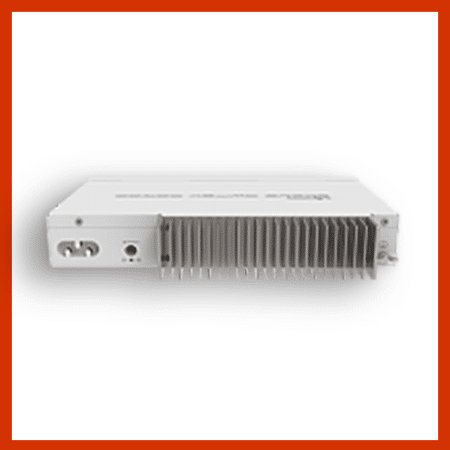

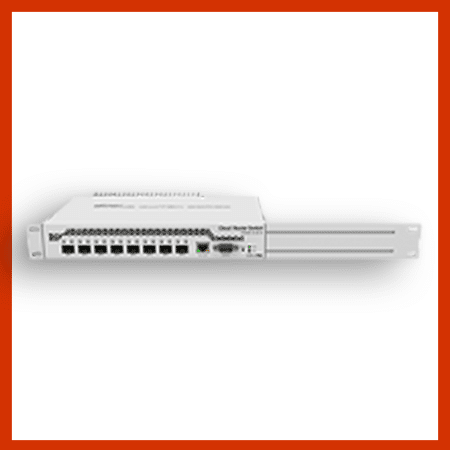

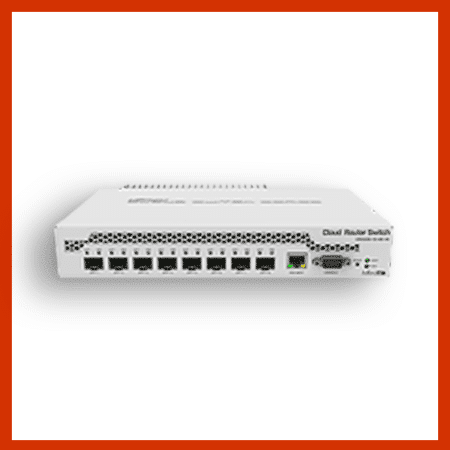

Mikrotik CRS309-1G-8S+IN
The CRS309-1G-8S+IN stands out in the networking world for its impressive combination of compact design and powerful performance. With eight SFP+ slots, it offers a robust total switching capacity of 162 Gbps and a non-blocking throughput of 81 Gbps. This means efficient handling of large data across networks.
The inclusion of a dual-core 800 MHz CPU and 512 MB RAM means that it can handle demanding tasks with ease. Additionally, the dual-booting capability between RouterOS and SwOS provides users with the option to select layer 3 or 2 operating systems.
The management Ethernet port with PoE powerIN, RS232 serial port further adds to its versatility. All those advantages making it a suitable choice for a variety of network environments. Be it, enterprise-level applications or for power users, the CRS309-1G-8S+IN is a switch that promises to deliver reliability and high performance.
Specifications
| Details |
| Product code |
CRS309-1G-8S+IN |
| Architecture |
ARM 32bit |
| CPU |
98DX8208 |
| CPU core count |
2 |
| CPU nominal frequency |
800 MHz |
| Dimensions |
141 x 115 x 28 mm |
| License level |
5 |
| Operating System |
RouterOS / SwitchOS |
| Size of RAM |
512 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
|
|
Powering
| Details |
| PoE in |
802.3af/at |
| PoE in input Voltage |
18-57 V |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-57 V |
| Max power consumption |
23 W |
| Max power consumption without attachments |
17 W |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
Fiber
Peripherals
| Details |
| Serial port |
RS232 |
Other
| Details |
| CPU temperature monitor |
Yes |
