Description

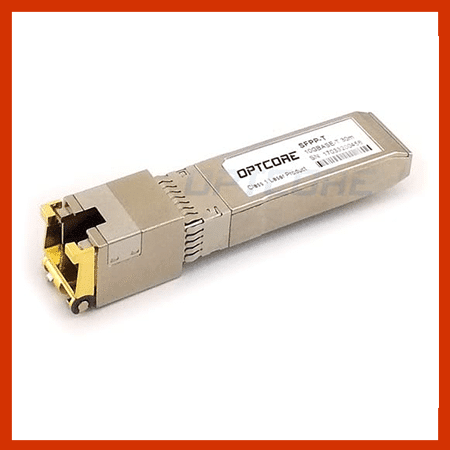

This 10GBASE-T SFP+ copper transceiver is specifically designed for 10 Gigabit Ethernet communication over Cat 6a / Cat7 cable with the extended transmission distance of 80m. It is compliant with the Multi-Source Agreement (MSA) and 10GBASE-T. The long reach 10G copper SFP+ transceiver allows IT designers and data center professionals to extend the distance of 10GbE Ethernet links over an existing copper cabling infrastructure. The copper module provides convenience, flexibility and cost savings for deploying 10 Gb/s technology over balanced twisted-pair copper cabling. This 10GBASE-T SFP+ module only support 10Gbase-T on line port.
Features
• Link length up to 80m using Cat6a and Cat7 patch cable
• Support 10Gbase-T on line port
• Support 10Gbase-R on the host port
• Provides Low-cost solution for copper network edge applications
• RJ-45 connector
Specification
| Product Series | 10GBASE-T Copper Transceiver | Optcore Part Number | SFPP-T-80M |
| Form Factor | SFP+ | Data Rate | 10GBASE-T |
| Wavelength | N/A | Cable Type | Cat 6a/Cat 7 cable |
| Max Distance | 80 m | Optical Components | N/A |
| Power Consumption | Typical 1.9W, Maximum 2.6W | Extinction ratio | N/A |
| Receiver Sensitivity | N/A | Connector | 1 – RJ-45 Female |
| Environment |
Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.035 kg |
| Application | 10G Ethernet over category 6a/7 twisted-pair copper cabling Enterprise data centers and server consolidations Low-cost campus backbones |
Compliance | SFF-8431 MSA SFF-8432 MSA IEEE 802.3az RoHS |
