Optcore-10G-bidi-60km

CAD$314.88

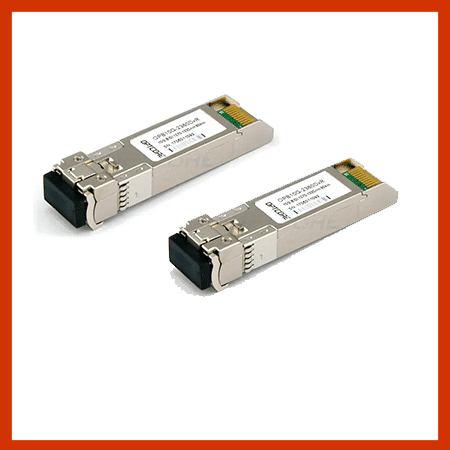

10Gb/s SFP+ Bi-Directional pair of  Transceiver Modules Single Mode Fiber TX:1330nm/RX:1270nm On the far side TX:1270nm/RX:1330nm, 60km, LC connector, DDM

Sold as a pair

In stock

SKU: OPB10G-2360-3260DCR Category:

Description

Optcore’s OPB10G-3260DCR & OPB10G-2360DCR are hot plug -able Small-Form-Factor SFP+ Bi-directional transceiver modules, which are designed for long reach 10Gb/s duplex optical data communications application. The SFP+ BiDi module features a highly reliable 1330nm DFB transmitter and 1270nm APD receiver into LC Simplex optical connector, which provides 60km link distance over single-strand single mode fiber.

This SFP+ BiDi transceiver module also provides a unique enhanced digital diagnostic monitoring interface(DDMI), which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage. The transceiver module complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-ER/EW per IEEE 802.3ae ), and 10G Fibre Channel. The transceiver is also a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

Features

• Hot-pluggable SFP+ footprint
• Electrical interface compliant to SFF-8431
• Compliant with SFF-8472
• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER
• 1330nm DFB transmitter, 1270nm APD photo-detector
• Distance up to 60km on single mode fiber
• LC Simplex connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Metal enclosure, for lower EMI
• ROHS compliant and lead-free

Specification

  Product Series Fiber Optical Transceiver   Optcore Part Number OPB10G-3260DCR/2360DCR
  Form Factor SFP+ BiDi   Data Rate 10Gb/s
  Wavelength TX:1330 nm/RX:1270 nm   Fiber Type SMF
  Max Distance 60 km   Optical Components DFB/APD
  Transmitter Power 0 ~ 5 dBm   Extinction ratio > 3.5 dB
  Receiver Sensitivity < -20 dBm   Receiver Overload > -7 dBm
  Connector LC Simplex   Digital Diagnostic Monitoring Yes
  Environment Operating: 0°C to 70°C
Storage: -40°C to 85°C
  Weight 0.03 kg

Additional information

Weight 0.7 kg
Dimensions 6 × 6 × 6 cm
