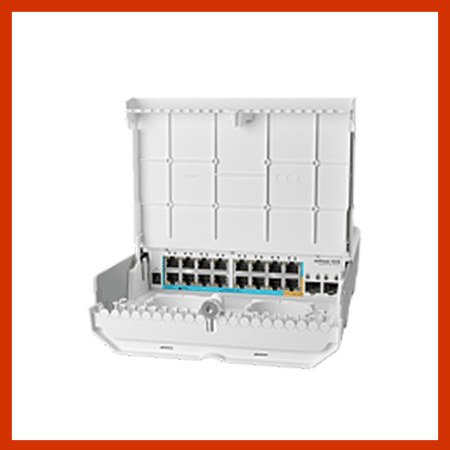

With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Another Ethernet port has PoE-out – you can use it to power an aggregate link such as our Wireless Wire Dish or a security camera, for example.

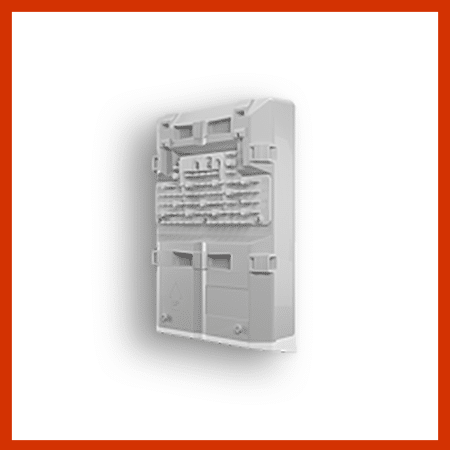

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!
netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.
The power supply is NOT included with the product- must be purchased separately. Read more information about GPEN concept.
Specifications
| Details |
| Product code |
CRS318-1Fi-15Fr-2S-OUT |
| Architecture |
ARM 32bit |
| CPU |
98DX224S |
| CPU core count |
1 |
| CPU nominal frequency |
800 MHz |
| Dimensions |
304 x 212 x 71 mm |
| License level |
5 |
| Operating System |
SwOS / RouterOS (Dual boot) |
| Size of RAM |
256 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
|
|
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
18-57 V (recommended 36-57V) |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
18-57 V |
| Max power consumption |
29 W |
| Max power consumption without attachments |
10 W |
PoE-out
| Details |
| PoE-out ports |
Ether15 |
| PoE out |
Passive PoE |
| Max out per port output (input < 30 V) |
0.75 A |
| Max out per port output (input > 30 V) |
0.5 A |
| Max total out (A) |
0.75 A |
Ethernet
| Details |
| 10/100 Ethernet ports |
16 |
Fiber
Other
| Details |
| CPU temperature monitor |
Yes |
| Voltage Monitor |
Yes |
