Description

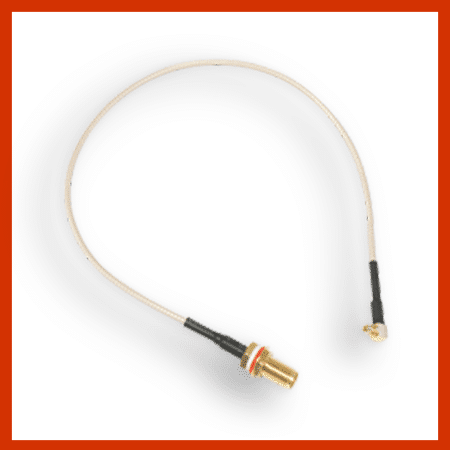

Pigtail MMCX to RPSMA

MMCX to RPSMA Pigtail for Radio Card to Antenna Connection

A pigtail cable is a short RF (radio frequency) coaxial cable used to connect wireless radio cards to external antennas. In this case, an MMCX to RPSMA pigtail serves as an adapter that bridges the radio card’s MMCX port to an antenna with an RPSMA connector, enabling seamless signal transmission.

Key Components of the MMCX to RPSMA Pigtail

1. MMCX Connector (Micro-Miniature Coaxial)

•A small, snap-on RF connector typically found on mini PCI or mini PCIe radio cards used in wireless networking and communication devices.

•Designed for compact spaces, providing a secure connection with low signal loss.

•Features a quick-lock mechanism, allowing easy attachment and detachment without excessive wear.

2. RPSMA Connector (Reverse Polarity SMA)

•A type of SMA (SubMiniature version A) connector commonly used in Wi-Fi and RF applications for external antennas.

•“Reverse Polarity” (RP) refers to the male/female configuration being opposite to standard SMA connectors, preventing accidental mismatches.

•Ensures a strong, low-loss connection between the radio card and the external antenna, improving signal performance.

3. Coaxial Cable (Flexible RF Cable)

•The pigtail cable itself is made of low-loss coaxial material, ensuring efficient transmission of radio signals between the radio card and antenna.

•Typically short in length (e.g., 10-30 cm) to minimize signal attenuation while maintaining flexibility for easy installation in confined spaces.

Why Use an MMCX to RPSMA Pigtail?

•Enables External Antenna Connection – Many radio cards come with MMCX connectors but lack external antenna ports. A pigtail bridges this gap, allowing for higher-gain antennas to be used.

•Improves Wireless Range & Performance – By connecting to a better-positioned or higher-gain antenna, wireless coverage and signal strength are significantly enhanced.

•Compact & Reliable – The small size of MMCX connectors makes them ideal for embedded wireless solutions, while the RPSMA side ensures compatibility with widely available antennas.

• Used in Various Applications – Commonly found in Wi-Fi routers, access points, IoT devices, telemetry systems, and RF communication equipment.

Conclusion

The MMCX to RPSMA pigtail is a crucial component in wireless networking and RF applications, enabling the seamless connection between a radio card and an external antenna. By using this adapter, users can enhance the signal quality, range, and overall performance of their wireless communication setup.
