Description

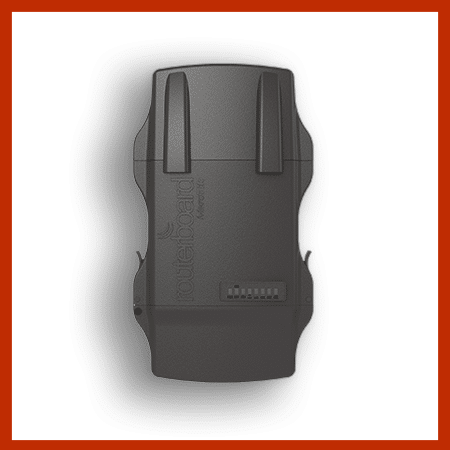

The NetMETAL is a completely new 802.11ac product in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for it’s high output power radio.
The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.
RB922UAGS-5HPacD-NM version is equipped with miniPCI-express slot and SIM slot for 3G/4G device or additional wireless card, High power 2×2 Dual Chain 802.11ac wireless and two RP-SMA connectors for external antennas
Product specifications
| Details | |
|---|---|
| Product code | RB922UAGS-5HPacD-NM |
| SFP DDMI | yes |
| CPU nominal frequency | 720 MHz |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| 10/100 Ethernet ports | None |
| 10/100/1000 Ethernet ports | 1 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 1 |
| Wireless chip model | QCA9882-BR4A-R |
| Wireless standards | 802.11ac |
| Number of USB ports | 1 |
| Power Jack | 0 |
| 802.3af support | no |
| PoE out | No |
| PoE in | Yes |
| Supported input voltage | 8 V – 30 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| CPU temperature monitor | No |
| Dimensions | 143x247x48mm (PCB) |
| Operating System | RouterOS |
| License level | 4 |
| Antenna gain DBI | No |
| Current Monitor | No |
| CPU | QCA9557-AT4A-R |
| Max Power consumption | 17 W |
| SFP ports | 1 |
| SFP+ ports | None |
| USB slot type | USB type A |
| Number of chains | 2 |
