Description

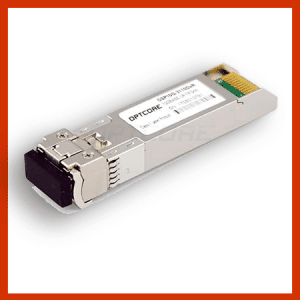

Optcore’s OSP10G-3140DCR is a high performance and cost-effective 10Gb/s SFP+ ER transceiver module for 10 Gigabit Ethernet links up to 40km over Single Mode fiber. This SFP+ ER module features a highly reliable 1310nm DFB transmitter and PIN photo-detector into duplex LC optical connector. The module complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-ER/EW per IEEE 802.3ae ), and 10G Fibre Channel. It’s suitable for use with 10GbE Ethernet switches, routers, network interface cards (NICs), fiber media converters and storage networking equipment. The OSP10G-3140DCR offers the most power efficient way to meet the demanding needs of the next-generation data center networking environment.
Additionally, this SFP+ ER transceiver module has been integrated with an enhanced digital diagnostic monitoring interface (DDMI) per SFF-8472, which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage. All SFP+ transceiver modules meet FDA/CDRH and IEC-60825 standards and are Class 1 laser products.
Features
• Hot-pluggable SFP+ footprint
• Electrical interface compliant to SFF-8431
• Compliant with SFF-8472
• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER
• 1310nm DFB transmitter, PIN photo-detector
• Distance up to 40km on single mode fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Power dissipation < 1.5W
• Metal enclosure, for lower EMI
• ROHS compliant and lead-free
Specification
Product Series | Fiber Optical Transceiver | Optcore Part Number | OSP10G-3140DCR |
Form Factor | SFP+ | Data Rate | 10Gb/s |
Wavelength | 1310 nm | Fiber Type | SMF |
Max Distance | 40 km | Optical Components | DFB/PIN |
Transmitter Power | 0 ~ 5 dBm | Extinction ratio | > 4.5 dB |
Receiver Sensitivity | < -16 dBm | Receiver Overload | > 0.5 dBm |
Connector | Duplex LC | Digital Diagnostic Monitoring | Yes |
Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
Application | 10GBASE-ER/10GBASE-EW Ethernet 10G Fiber Channel 10GE Data Center Switches and Routers 10GE Network interface cards and Fiber Media Converters |
Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
