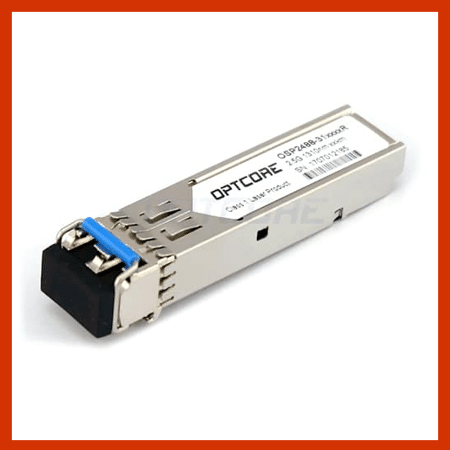

Optcore 2.5G single-mode SFP

CAD$20.13

Optcore 2.5Gbps 2KM single mode SFP Transceiver Module for Mikrotik, Ubiquiti, Grandstream…. This SFP transceiver also supports TDM &  fibre channel technologies such as,SDH STM-16/SONET OC-48 (SMF, 1310nm, 300m, LC, DDM).

  • Wavelength 1310nm.
  • Link reach approximately 2 KM.
  • Single-mode fibre cable.
  • Duplex LC connector.
  • DDM (Diagnostics).

In stock

Description

OSP2488-312DCR

Optcore’s OSP2488-312DCR is a high-performance small form factor pluggable SFP module for 2.5Gb/s serial optical data communications such as SDH STM-16 S-16.1/SONET OC-48 IR-1/2x Fibre Channel application. This SFP transceiver module provides 2km transmission distance over single mode fiber at a nominal wavelength of 1310nm. The transmitter section incorporates a 1310nm DFB laser that is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses a high-speed InGaAs PIN photodiode (PD) and trans-impedance preamplifier. The 2.5Gb/s SFP module series is fully compliant with SFP Multi-Sourcing Agreement (MSA) and SFF-8472. For further information, please see SFP MSA and SFF-8472 standard.

Additionally, the OSP2488-312DCR SFP module also features a digital diagnostic interface per SFF-8472, which provides real-time monitoring of the transceiver temperature, supply voltage, laser bias current, laser average output power and received optical power. These parameters are internally calibrated by default.

Features

• Hot-pluggable SFP footprint
• Up to 2.5Gb/s data links
• Compliant with SFP MSA standard
• 1310nm DFB laser transmitter and InGaAs PIN receiver
• Up to 2km on 9/125µm SMF
• Single 3.3V power supply
• Support Digital Diagnostic Monitoring interface
• Duplex LC connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free



Specification

  Product Series Fiber Optical Transceiver   Optcore Part Number OSP2488-312DCR
  Form Factor SFP (Mini-GBIC)   Data Rate 2.5 Gb/s
  Wavelength 1310 nm   Fiber Type SMF
  Max Distance 2 km   Optical Components DFB/PIN
  Transmitter Power -5~0 dBm   Extinction ratio > 8.2 dB
  Receiver Sensitivity < -19 dBm   Receiver Overload > -3 dBm
  Connector Duplex LC   Digital Diagnostic Monitoring Yes
  Environment Operating: 0°C to 70°C
Storage: -40°C to 85°C
  Weight 0.03 kg
  Application
SDH STM-16 switches and routers
SONET OC-48 switches and routers
2x Fibre Channel
Other Optical Links
  Compliance IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11
RoHS

Additional information

Weight 0.1 kg
Dimensions 12 × 6 × 3 cm
