Optcore QSFP-DD-DAC
This breakout cable converts a 400G Fibre port to 2 x 200G Fibre connection. Designed for equipment such as Mikrotik CRS812 DDQ & CRS804DDQ which sport 400G fibre ports.

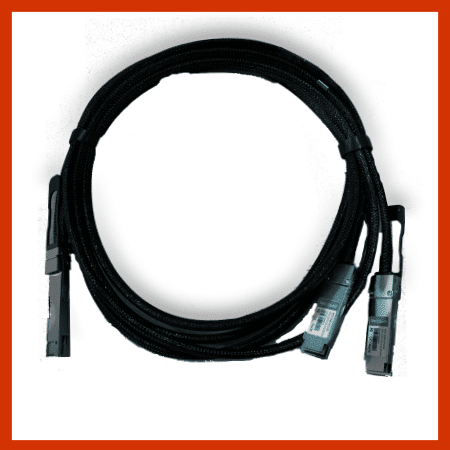

400G QSFP-DD to 2x 200G QSFP56 DAC Breakout Cable | Generic QDD-400-2Q-CU Compatible
Upgrade your high-speed infrastructure with the Optcore 400G QSFP-DD to 2x 200G QSFP56 DAC breakout cable. This cost-effective, passive copper cable is a high-performance alternative to the Generic QDD-400-2Q-CU, delivering reliable connectivity without compromising signal integrity.
-
100% Compatibility: Fully programmed and tested to meet original Generic QDD-400-2Q-CU specifications.
-
High-Speed Performance: Designed for 400G networking, including data centers, enterprise core layers, and high-performance computing (HPC).
-
Cost-Efficient Connectivity: A budget-friendly solution for interconnecting switches, servers, and distribution layers.
| Form Factor | QSFP-DD DAC Breakout Cable | Data Rate | 400Gbps to 2x 200Gbps |
| Passive or actively equalized | Passive | Supply Voltage | 3.3V |
| Cable Length | 0.5~2.5 meter (1.6~8.2 ft) | Cable impedance | 100 Ω |
| Cable Type | Twinax Copper Cable | Wire Gauge | 28/30AWG |
| Minimum cable bend radius | 45~60 mm | Cable Jacket Type | PVC |
| Connector | QSFP-DD to 2x QSFP56 | Digital Diagnostic Monitoring | N/A |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.6 kg |
| Application | Data centers, high-end servers Enterprise wiring closets |
Compliance | IEEE802.3cd InfiniBand EDR SFF-8436, RoHS |
