Description

OSP2488-8503DCR

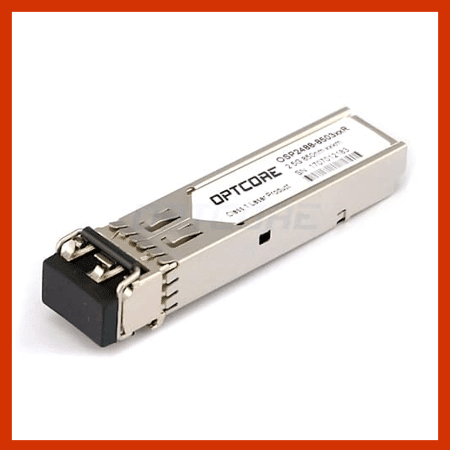

Optcore’s OSP2488-8503DCR is a high-performance small form factor pluggable SFP module for 2.5Gb/s serial optical data communications such as SDH STM-16 I-16/SONET OC-48 SR-1/2x Fibre Channel application. This SFP transceiver module provides 300m transmission distance over multimode fiber at a nominal wavelength of 850nm. The transmitter section incorporates an 850nm VCSEL laser that is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses a high-speed InGaAs PIN photodiode (PD) and trans-impedance preamplifier. The 2.5Gb/s SFP module series is fully compliant with SFP Multi-Sourcing Agreement (MSA) and SFF-8472. For further information, please see SFP MSA and SFF-8472 standard.

Additionally, the OSP2488-8503DCR SFP module also features a digital diagnostic interface per SFF-8472, which provides real-time monitoring of the transceiver temperature, supply voltage, laser bias current, laser average output power and received optical power. These parameters are internally calibrated by default.

Features

• Hot-pluggable SFP footprint
• Up to 2.5Gb/s data links
• Compliant with SFP MSA standard
• 850nm VCSEL laser transmitter and InGaAs PIN receiver
• Up to 300m on 50/125µm MMF
• Single 3.3V power supply
• Support Digital Diagnostic Monitoring interface
• Duplex LC connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free

Specification
