Stable Dual Band Wi-Fi Extension to Bring Dead Zones to Life
Easily Expand Your Wi-Fi Coverage
Tired of Wi-Fi dead zones in your home? The RE305 Range Extender connects to your Wi-Fi router wirelessly, strengthening and expanding its signal into areas it can’t reach on its own, while reducing signal interference to ensure reliable Wi-Fi coverage throughout your home or office.
High-Speed Dual Band Wi-Fi for Better Connections
The RE305 lets you keep more devices connected at the same time with its 2.4GHz 300Mbps and 5GHz 867Mbps dual bands. Use the 2.4GHz band to send email and browse the web, and the 5GHz band for gaming and HD streaming.
- 300Mbps
- 2.4GHz Band
- 867Mbps
- 5GHz Band
Perfect Location at a Glimpse
An Intelligent Signal light helps you quickly find the best location to install the RE305.
- Blue
- Good
connection
- Red
- Too far away
from the router
Built-in Access Point Mode
RE305 is more than a wireless range extender. Simply plug the Ethernet cable into its Ethernet port to easily turn your wired internet connection into a dual band wireless access point.
Easy Management and Remote Control
The RE305 works with all Wi-Fi routers. You can use TP-Link’s free Tether app to set up the range extender from any Android or iOS device in minutes. This feature-rich phone app allows you to enjoy not only hassle-free installation, but also access to advanced network management, all at your fingertips.
HARDWARE FEATURES | |
---|---|
Plug Type | EU, UK, US |
Standards and Protocols | IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b |
Interface | 1 * 10/100M Ethernet Port (RJ45) |
Button | WPS Button, Reset Button |
Power Consumption | 7.3W(max power consumption) |
Dimensions ( W x D x H ) | 3.1*3.0*3.0 in. (80*78*77mm) |
Antenna | 2* external |
WIRELESS FEATURES | |
---|---|
Frequency | 2.4GHz & 5GHz(11ac) |
Signal Rate | 5GHz:Up to 867Mbps 2.4GHz:Up to 300Mpbs |
Reception Sensitivity | 5GHz: 11a 6Mbps:-91dBm@10% PER 11a 54Mbps: -74dBm@10% PER 11ac HT20 mcs8: -68dBm@10% PER 11ac HT40 mcs9: -63dBm@10% PER 11ac HT80 mcs9: -59dBm@10% PER 2.4GHz 11g 54M: -79dBm@10% PER 11n HT20 mcs7: -77dBm@10% PER 11n HT40 mcs7: -74dBm@10% PER |
Wireless Modes | Range Extender/Access Point Wireless Statistic Concurrent Mode boost both 2.4G/5G Wi-Fi band |
Wireless Functions | Wireless Statistic Concurrent Mode boost both 2.4G/5G Wi-Fi band Access Control LED Control Domain Login Function |
Wireless Security | 64/128-bit WEP WPA-PSK / WPA2-PSK |
Transmission Power | <17dBm(2.4GHz) <17dBm(5GHz) |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |

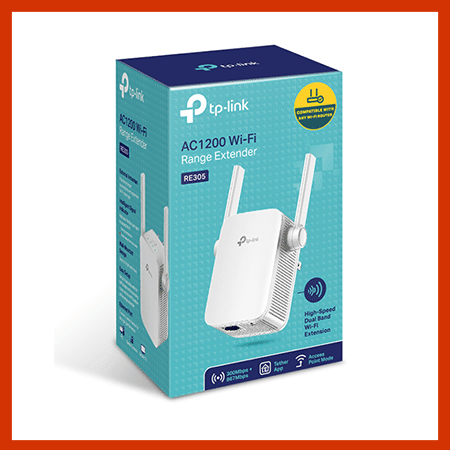

Package Contents | AC1200 Wi-Fi Range Extender RE305 Quick Installation Guide |
Box Dimensions (W X D X H) | 6.15*4*3.7in. (156.5*101.5*95mm) |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
