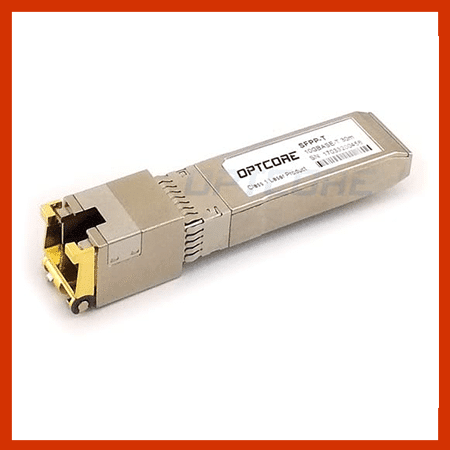

MikroTik S+RJ10 Compatible10GBASE-T Copper SFP+ Transceiver Module (10G, Cat6A/Cat7, 30m, RJ-45)
This MikroTik S+RJ10 compatible 10GBASE-T Copper SFP+ transceiver is designed for use with MikroTik networking equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and 10G Media Converters. It is programmed and tested to perform identical to the original MikroTik S+RJ10 10G SFP+ copper transceiver and provide a cost-effective replacement. It’s specifically designed for high speed 10 Gigabit Ethernet communication over Cat 6a / Cat7 cable. It is compliant with the Multi-Source Agreement (MSA) and 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T standards as specified in IEEE STD 802.3an, 802.3ab and 802.3au.
Features
• Functionally similar to MikroTik S+RJ10
• Link length up to 30m using Cat 6a/Cat 7 cable
• Backward compatibility: Supports 1000Base-T/2.5GBase-T/5GBase-T
• Low Power Consumption (2.5W @ 30m)
• Auto-negotiates with other 10GBase-T PHYs
• Provides Low-cost solution for copper network edge applications
• RJ-45 connector
Specification
| OEM Part Number | S+RJ10 | Optcore Part Number | SFPP-T |
| Form Factor | SFP+ | Data Rate | 10GBASE-T |
| Wavelength | N/A | Cable Type | Cat 6a/Cat 7 cable |
| Max Distance | 30 m | Optical Components | N/A |
| Transmitter Power | N/A | Extinction ratio | N/A |
| Receiver Sensitivity | N/A | Receiver Overload | N/A |
| Connector | 1 – RJ-45 Female | Digital Diagnostic Monitoring | No |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | 10G Ethernet over category 6a/7 twisted-pair copper cablingEnterprise data centers and server consolidations
Low-cost campus backbones |
Compliance | SFF-8431 MSA SFF-8432 MSA IEEE 802.3az RoHS |
