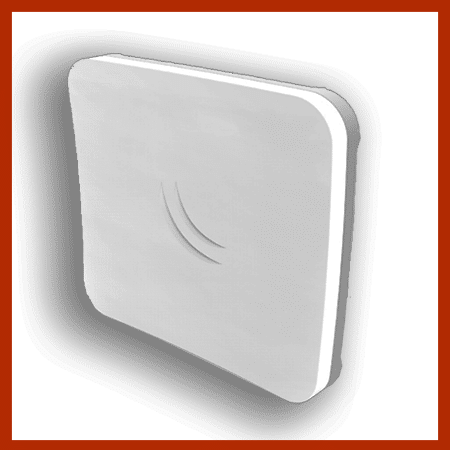

The SXTsq 5 ac
The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.
The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced – the SXTsq is two times thinner.
– SXTsq 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
– SXTsq 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
| Details |
| Product code |
RBSXTsqG-5acD |
| Architecture |
ARM 32bit |
| CPU |
IPQ-4018 |
| CPU core count |
4 |
| CPU nominal frequency |
716 MHz |
| Dimensions |
129 x 129 x 34 mm |
| License level |
3 |
| Operating System |
RouterOS |
| Size of RAM |
256 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40 to 70° C |
|
|
Powering
| Details |
| Max Power consumption |
7W |
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-30 V |
| Number of DC inputs |
1 (PoE-IN) |
Wireless
| Details |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11ac |
| Antenna gain dBi for 5 GHz |
16 |
| Wireless 5 GHz chip model |
IPQ-4018 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
Wireless specifications
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
25 |
-96 |
| 54MBit/s |
21 |
-80 |
| MCS0 |
25 |
-96 |
| MCS7 |
20 |
-75 |
| MCS9 |
18 |
-70 |
