SXTsq Lite5

Low-cost small-size 16dBi 5GHz dual chain integrated CPE/Backbone

In stock

SKU: RBSXTsq5nD Category:

Description

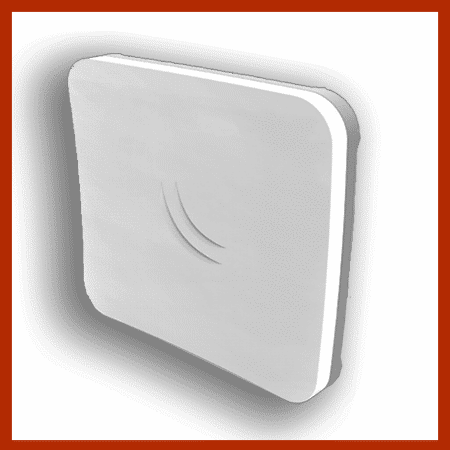

SXTsq Lite5

The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced – the SXTsq is two times thinner (see photos for comparison).

The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle.

Product code RBSXTsq5nD
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 129x129x34mm
License level 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C .. +70°C
Suggested price $46.00

Powering

Details
Max Power consumption 6W
PoE in Passive PoE
PoE in input Voltage 10-30 V

Wireless

Details
Antenna gain dBi for 5 GHz 16
Number of chains 2
Wireless 5 GHz chip model AR9344
Wireless 5 GHz standards 802.11a/n

Ethernet

Details
10/100 Ethernet ports 1

Wireless specifications

5 GHz
Transmit (dBm) Receive Sensitivity
6MBit/s 25 -96
54MBit/s 20 -80
MCS0 25 -96
MCS7 19 -75

Additional information

Weight 0.4 kg
Dimensions 6 × 26 × 18 cm
