Description

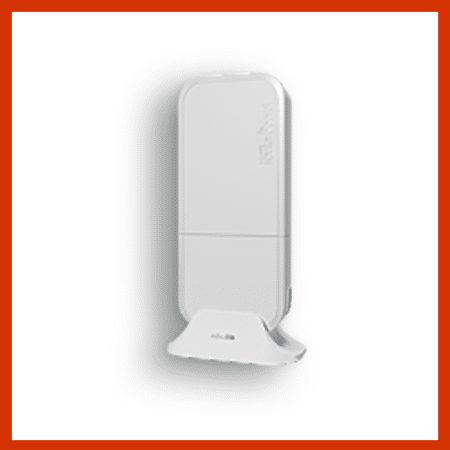

Mikrotik wAP ac
The wAP ac is a versatile and robust wireless access point designed to provide reliable internet connectivity in various outdoor settings.

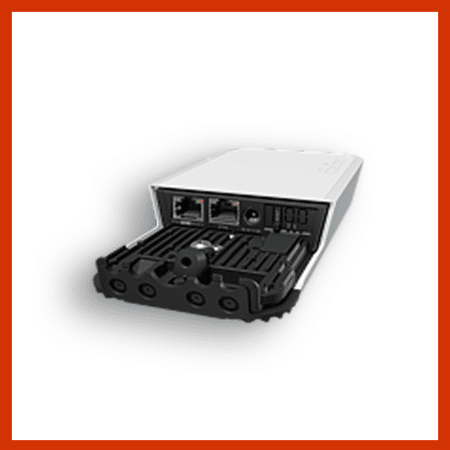

Its weatherproof design ensures durability against environmental elements, making it ideal for gardens, porches, or any outdoor area. The device boasts a powerful quad-core CPU and increased RAM, enhancing its performance capabilities. With dual Gigabit Ethernet ports and improved antenna performance, the wAP ac offers efficient and high-speed connectivity.
The dual-band feature supports both 2.4 GHz and 5 GHz frequencies, allowing for flexible device compatibility and reduced interference in densely populated areas. The 2.4 GHz band caters to older devices, while the 5 GHz band serves newer devices.

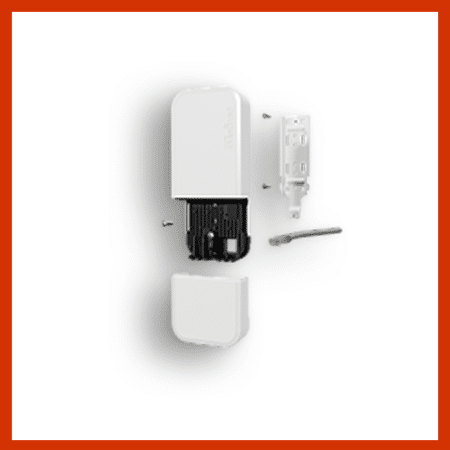

For security, the wAP ac can be securely mounted to an external wall with minimal visibility of attachments, and the anti-vandal screw ensures that only the owner can access Additionally, the discreet cable management through the back of the case allows for a clean and unobtrusive installation, blending seamlessly with the environment.
Available in black and white, the wAP ac offers aesthetic choices to match different exteriors, further emphasizing its user-friendly design.
Specifications
Details |
Product code |
RBwAPG-5HacD2HnD |
Architecture |
ARM 32bit |
CPU |
IPQ-4018 |
CPU core count |
4 |
IPsec hardware acceleration |
Yes |
Dimensions |
185 x 85 x 30 mm |
RouterOS license |
4 |
Operating System |
RouterOS |
Size of RAM |
128 MB |
Storage size |
16 MB |
Storage type |
FLASH |
MTBF |
Approximately 100’000 hours at 25C |
|
|
Wireless capabilities
Details |
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
Wireless 2.4 GHz number of chains |
2 |
Wireless 2.4 GHz standards |
802.11b/g/n |
Antenna gain dBi for 2.4 GHz |
2.5 |
Wireless 2.4 GHz chip model |
IPQ-4018 |
Wireless 2.4 GHz generation |
Wi-Fi 4 |
Wireless 5 GHz Max data rate |
867 Mbit/s |
Wireless 5 GHz number of chains |
2 |
Wireless 5 GHz standards |
802.11a/n/ac |
Antenna gain dBi for 5 GHz |
2.5 |
Wireless 5 GHz chip model |
IPQ-4018 |
Wireless 5 GHz generation |
Wi-Fi 5 |
AC speed |
AC1200 |
Ethernet
Details |
10/100/1000 Ethernet ports |
2 |
Powering
Details |
PoE in |
802.3af/at |
PoE in input Voltage |
18-57 V |
Number of DC inputs |
2 (DC jack, PoE-IN) |
DC jack input Voltage |
10-57 V |
Max power consumption |
10 W |
Max power consumption without attachments |
9 W |
FAN count |
Passive |
Certification & Approvals
Details |
Certification |
CE, FCC, IC, EAC, ROHS |
Other
Details |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Wireless specifications
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
1MBit/s |
25 |
-100 |
11MBit/s |
25 |
-94 |
6MBit/s |
25 |
-96 |
54MBit/s |
19 |
-78 |
MCS0 |
25 |
-96 |
MCS7 |
18 |
-73 |
5 GHz |
Transmit (dBm) |
Receive Sensitivity |
6MBit/s |
24 |
-96 |
54MBit/s |
20 |
-80 |
MCS0 |
24 |
-96 |
MCS7 |
19 |
-75 |
MCS9 |
17 |
-70 |
