40km CWDM 1.25G 1490nm

Description

CWDM SFP Transceiver Module is a hot-swappable input/output device that plugs into an SFP port or slot of switch or router, linking the port with the fiber-optic network. The Coarse Wavelength-Division Multiplexing (CWDM) Small Form-Factor Pluggable (SFP) solution allows enterprise companies and service providers to provide scalable and easy-to-deploy Gigabit Ethernet and Fiber Channel services in their networks. The product set helps enable the flexible design of highly available, multiservice networks.

Our CWDM SFP transceiver module provides a convenient and cost-effective solution for the adoption of Gigabit Ethernet and Fiber Channel in campus, data-center, and metropolitan-area access networks.

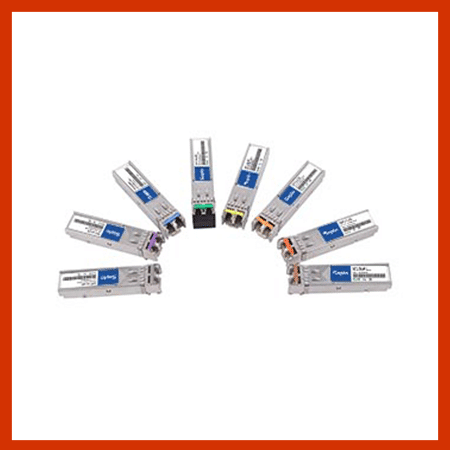

SOPTO CWDM SFP Transceiver Main Info

1. Ring Color: Blue/Yellow/Red/Brown…
2. Material: Metal
3. Weight: 0.02kg
4. Data Rate: 125M/1.25G/2.5G
5. Wavelength: CWDM 1270nm~1610nm
6. Fiber Types: Single Mode (SM)
7. Fiber Connector Type: Duplex LC
8. Transmission Mode: Duplex
9. Transmission Distance: 40km, 80km, 120km
10. Laser Type: CWDM DFB Laser diode transmitter, PIN or APD Receiver
11. Operating Case Temperature: Standard: 0~70°C; Industrial: -40~85°C
12. DDM Function: With or without both available
13. Compatible Brands: Cisco, Finisar, HP, Alctel-Lucent, Juniper, Noterl…

Other Info of our CWDM SFP

1. Operating Humidity: 0%~90% RH no condensing
2. Storage Humidity: 5%~90% RH no condensing
3. Saturated Optical Power: -3dBm
4. Average Output Power: -28~ -14dBm
5. Receiver Sensitivity: -31dBm
6. Supply Current: 351~386mA
7. Power Supply: +3.3V single power supply
8. Power Consumption: <3W
9. Extinction Ratio: 9~17dB
10. Storage Temperature: -40~85°C
11. Number of Times of Hot-Pluggable: >200

Performance Feature:

1. Hot-Pluggable SFP Footprint LC Optical Transceiver
2. 100Mb~10Gb speed rates
3. Small Form-Factor Pluggable (SFP) MSA compatible
4. Compliant with IEEE 802.3z Gigabit Ethernet 1000BASE-ZX
5. Compliant with Fibre Channel 1X SM-LC-L FC-PI
6. 18 Wavelength (λ): 1270 nm to 1610 nm CWDM DFB LD Transmitter
7. Up to 41dB/1G, 35dB/2.67G, 47dB/100MB Power Budget at Least
8. AC/AC Coupling according to MSA
9. Single +3.3 V Power Supply
10. RoHS Compliant
11. 0 to 70°C or -40 to 85°C operation temperature range.
12. Class 1 Laser International Safety Standard IEC-60825 Compliant
