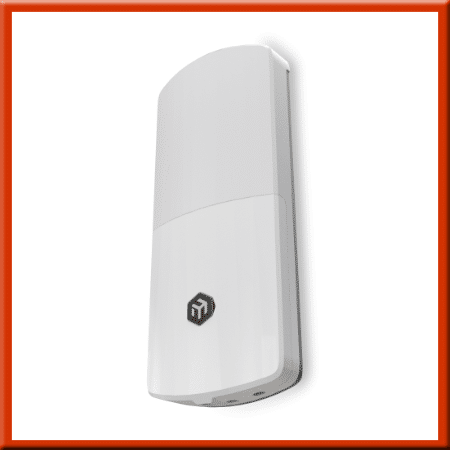

Mikrotik FTC21-ups
Fiber is fast. Fiber is reliable
Until the power starts misbehaving
At the network edge, it is rarely the fiber that fails. It is unstable power, brownouts, short outages, and voltage drops that trigger renegotiations, device reboots, and unnecessary support tickets. The FTC21-ups is built to save you some major headaches when dealing with unreliable power sources.
Specifications
- Product code FTC21-ups
- Suggested price $99.00
- Switch chip model 88E6341
- MTBF Approximately 100’000 hours at 25C
- Tested ambient temperature -40°C to 70°C
Powering
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 24-57 V
- Max power consumption 28 W
- Max power consumption without attachments 3 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 48-57 V
PoE-out
- PoE-out ports Ether2
- PoE out Passive PoE up to 57V
- Low voltage PoE-Out current limit 0.625 A
- High voltage PoE-Out current limit 0.315 A
- Max total out (A) 0.625 A
- Total output current 0.625
- Total output power 15
Ethernet
- 10/100/1000 Ethernet ports 2
- Number of 1G Ethernet ports with PoE-out 1
Fiber
- SFP ports 1 (2.5G supported)
Other
- PCB temperature monitor Yes
Certification & Approvals
- Certification CE, EAC, ROHS
- IP 67
