L23UGSR-5HaxD2HaxD

CAD$134.07

Build your own custom outdoor Wi-Fi 6 access point or CPE! This modular wireless router comes with handy MMCX connectors, allowing you to create versatile omni-directional access points and powerful point-to-point links.

  • ARM CPU.
  • WIFI 6 Dual ban 5 and 2.4GHz.
  • 2.5G SFP cage.
  • PCI-E expansion connector with SIM slot.

In stock

SKU: L23UGSR-5HaxD2HaxD Category: Tag:

Description

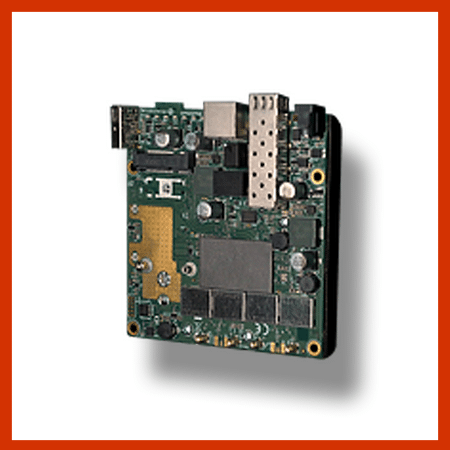

The RouterBoard series is taking a significant leap forward with the introduction of the L23UGSR, a dual-band Wi-Fi 6 router that promises to revolutionize the DIY networking space. This new model retains the spirit of customization and ownership that fans appreciate, with no hidden fees or licenses, while offering cutting-edge technology.

The Qualcomm Maple CPU, versatile connectivity options including a USB port, Gigabit Ethernet, and 2.5 Gigabit SFP, plus a miniPCIe slot for additional customization, make it a robust choice for various applications.

Whether it’s for creating a home or office network, or for innovators looking to integrate it into their own products like smart vending machines or ticket stations, the L23UGSR provides a solid foundation.

Its advanced Wi-Fi 6 capabilities ensure faster and more reliable connections over longer distances, up to 30 kilometers, depending on the antenna used. The inclusion of MMCX connectors opens up a world of antenna possibilities, allowing users to tailor their setup to their specific needs, whether that’s an omnidirectional access point or a long-range point-to-point link.

For those who love a touch of nostalgia, the classic beeper is there for alarms or even creative uses, underscoring MikroTik’s commitment to both innovation and user preference.

*It’s important to note that while longer links are feasible, their reliability may vary. Additionally, the distance achievable greatly depends on the antenna selected for use.

Specifications

Details
Product code L23UGSR-5HaxD2HaxD
Architecture ARM
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-28 V
Max power consumption 25 W
Max power consumption without attachments 12 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Wireless 2.4 GHz chip model IPQ-5010
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 2400 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Wireless 5 GHz chip model QCN-6102
Wireless 5 GHz generation Wi-Fi 6

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP ports 1 (2.5G supported)

Peripherals

Details
Number of SIM slots 1 Modem (Nano SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1.5

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Additional information

Weight 0.3 kg
Dimensions 16 × 14 × 6 cm
