Description

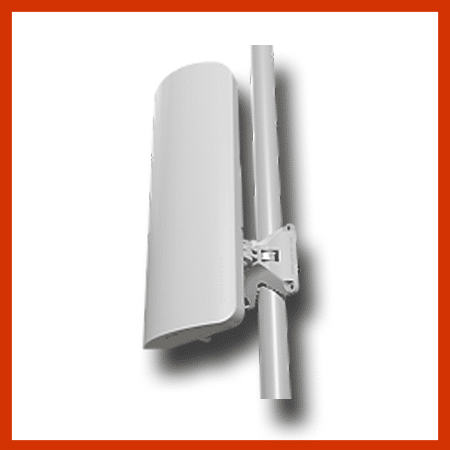

Mikrotik mANTBox ax 15s

Managing outdoor wireless network has never been easier. Mikrotik mANTBox ax 15s can provide unparalleled wireless point-to-multipoint connectivity for a vast variety of devices over a distance of 20 kilometres!

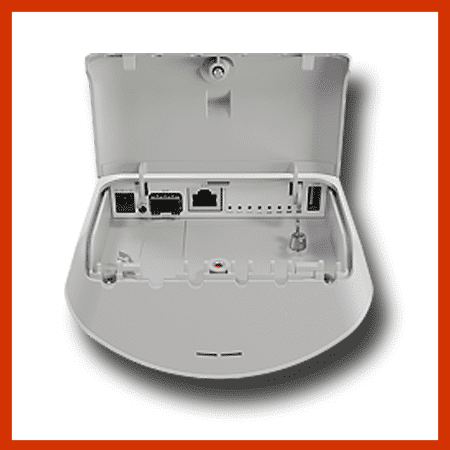

A potent combination of modern dual-core ARM CPUs, our latest 802.11ax Wi-Fi 6 dual-band radios and powerful built-in sector antennas will take your signal stability, speed, and responsiveness to the next level! There’s a Gigabit Ethernet port with PoE-in and an SFP port with 2.5 Gigabit support for extra fast fiber uplinks.

Upgrading your setup to Wi-Fi 6 offers multiple benefits:

Speed- Improved up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.

Security- WPA3 encryption and management frame protection prevent all sorts of attacks, like bruteforcing and WPA2 handshakecapture deauthentication attacks

Reliability- seamless fast transition (roaming) enables smooth, non-stop signal when you have to switch between access points. Also, Wi-Fi 6 ensures a fair traffic distribution if the connection is shared by a large number of users.

Energy efficiency: features like Target Wake Time reduce power consumption in the long run. Better for your wallet and the planet!

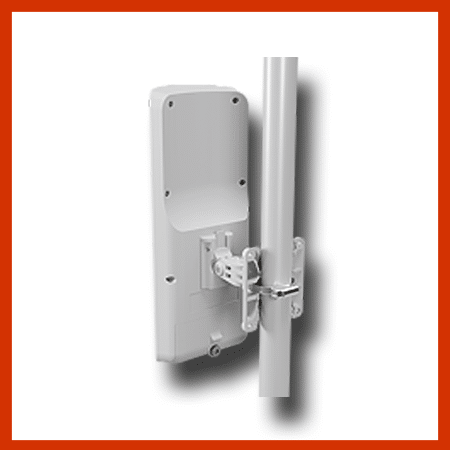

mANTBox package includes everything you need. A Gigabit PoE injector, a power supply, a hose clamp and a fastening set, and the MikroTik quickMOUNT pro. This advanced wall mount adapter allows turning antenna within 140° both horizontally and vertically. With the quickMOUNT pro it is possible to perfectly set antenna alignment using an integrated graduated scale.



Specifications

Details
Product code	L22UGS-5HaxD2HaxD-15S
Architecture	ARM 64bit
CPU	IPQ-5010
CPU core count	2
CPU nominal frequency	800 MHz
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	256 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-28 V
Max power consumption	21 W
Max power consumption without attachments	11 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	18-28 V

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	574 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz	12
Wireless 2.4 GHz chip model	IPQ-5010
Wireless 2.4 GHz generation	Wi-Fi 6
Wireless 5 GHz Max data rate	2400 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac/ax
Antenna gain dBi for 5 GHz	15
Wireless 5 GHz chip model	QCN-6102
Wireless 5 GHz generation	Wi-Fi 6

Ethernet

Details
10/100/1000 Ethernet ports	1

Fiber

Details
SFP ports	1 (2.5G supported)

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1.5

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes
