Description

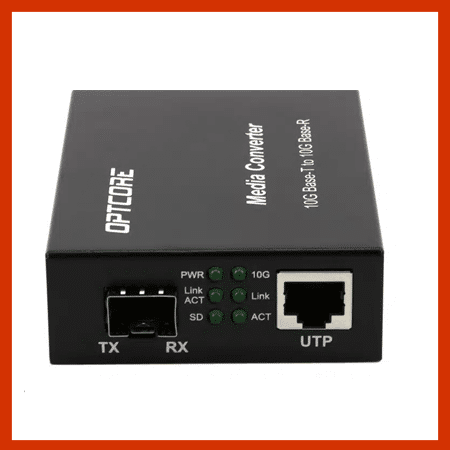

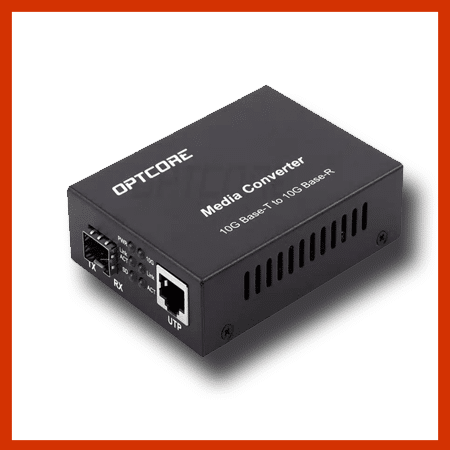

1G/2.5G/5G/10GBASE-T RJ45 Copper to 10GBASE-X SFP+ Fibre Media Converter (10GBASE-T RJ45 100m, Open SFP+ Port)
MC-10GSA11-L is a standalone 10G media converter that supports 10Gigabit Ethernet media conversion from 10GBase-T to the 10GBase-X fibre via an open SFP+ slot. This 10G Ethernet media converter is designed with a 10Gbase Ethernet PHY chip that smoothly connects two types of segments. This converter can be used as a standalone unit or as the slide-in module to the 19” converter rack Chassis for use at a central wiring closet.
Flexible and Reliable High-Speed Network Distance Extension Solution
This 10G Ethernet media converter is equipped with one RJ-45 auto-negotiation port and one open SFP+ slot. The RJ-45 port auto-negotiates with 10GBASE-T, 5GBASE-T, 2.5GBASE-T, and 1000BASE-T. The open SFP+ slot supports a wide range of 10G SFP+ transceivers include 10GBASE-SR, 10GBASE-LR, 10GBASE-LRM, 10GBASE-ER, 10GBASE-ZR, 10GBASE-BX and 10GBASE-CWDM. It provides an ideal solution to extend the transmission distance of traditional 10G copper (RJ45) based network. You could achieve a max of 80 kilometers by choosing a 10GBASE-ZR SFP+ fiber module over Singlemode fiber. This 10G SFP+ fiber media converter is suitable for use in network environments where ultra-high bandwidth provided by 10G Ethernet is required.
Features
• Cost-effective migration from 10GBase-T copper to 10GBASE-X fiber SFP+
• Auto-negotiation function allows UTP ports to auto select 1G/2.5G/5G/10GBase-T
• The UTP port supports the connection of MDI/MDI-X auto crossover
• Open SFP+ slot to customize the network extension distance to your requirements with any MSA 10G SFP transceiver
• Supporting flow control
• Easy-to-view LED indicators to provide status to monitor network activity easily
• ROHS compliant and Lead-Free
Specification
| Product Series | 10G Ethernet Media Converter | Standards and Protocols | IEEE 802.3 IEEE 802.3an IEEE 802.3ae IEEE 802.3az |
| Ports | 1 x 10GBASE-T RJ45 port 1 x 10GBASE-X SFP+ port |
Network Media | 1000Base-T: Cat5 UTP/STP. MAX 100m; 2.5GBase-T: Cat5e UTP/STP. MAX 50m; 5GBase-T: Cat5e UTP/STP. MAX 50m; 10GBase-T: Cat6a UTP/STP. MAX 50m; 10GBase-X: Multimode or Singlemode Fiber (max 80km, depends on the SFP+ module) |
| Flow control | Full Duplex: IEEE802.3x Half Duplex: back pressure |
LED indicator | Power, FX 100, FX Link/Act SD, 10G, TX Link, TX Act |
| Jumbo Frame | 9.6K | Enclosure | Compact-sized metal case |
| Wavelength | Depends on SFP+ Transceiver | Fiber Type | Multimode or Singlemode Fiber |
| Transmitter Power | Depends on SFP+ Transceiver | Receiver Sensitivity | Depends on SFP+ Transceiver |

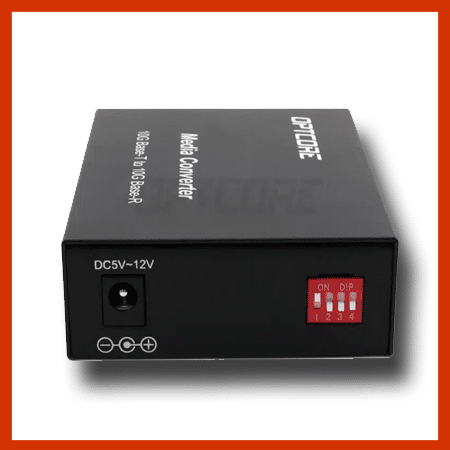

| Power Supply | External Power Adapter Input: AC 100~240V 50/60Hz Output: DC 12V 1.6A |
Power Consumption | 5W |
| Dimensions (WxDxH) | 26×70×93mm | Gross Weight | 0.5 kg |
| Environment | Operating: 0°C to 50°C, 10~90% RH Storage: -40°C to 70°C, 5~90% RH |
Compliance | FDA IEC/EN 60825-1 ROHS, CE |
