Description

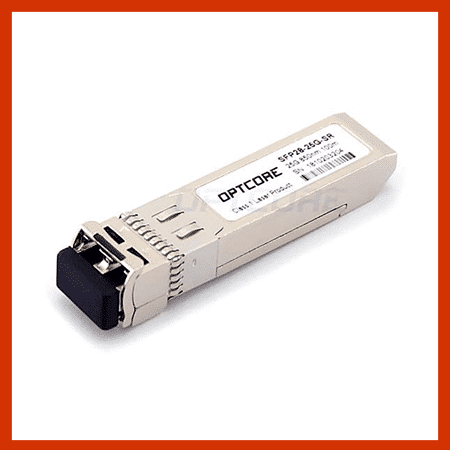

This SFP-25G-SR-S Compatible 25G SFP28 SR transceiver is designed for use with Cisco 25 Gigabit Ethernet connectivity in data center and high-performance computing networks applications. It is programmed and tested to perform identical to original Cisco SFP-25G-SR-S 25GBASE-SR SFP28 Module and provide a cost-effective replacement. It can be used in 25 GE SFP28 ports of Mikrotik or Cisco Fiber Switches, Routers, Line card, and so on. The SFP28 SR module support max links of 70m over OM3 or 100m over OM4 multi-mode fiber.
Features
• Functionally similar to Cisco SFP-25G-SR-S
• Hot-pluggable SFP28 form factor
• Support for 25Gb/s data rate
• 850nm VCSEL transmitter, PIN photo-detector
• Distance up to 100m on OM4 Multi-mode fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
Specification
| OEM Part Number | SFP-25G-SR-S | Optcore Part Number | SFP28-25G-SR-CSC |
| Form Factor | SFP28 | Data Rate | 25 Gb/s |
| Wavelength | 850 nm | Fiber Type | MMF |
| Max Distance | 70m on OM3, 100m on OM4 | Optical Components | VCSEL/PIN |
| Transmitter Power | -8.4 ~ 2.4 dBm | Extinction ratio | > 2 dB |
| Receiver Sensitivity | < -10 dBm | Receiver Overload | > 0.5 dBm |
| Connector | Duplex LC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 25GBASE-SR Ethernet | Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
