Description

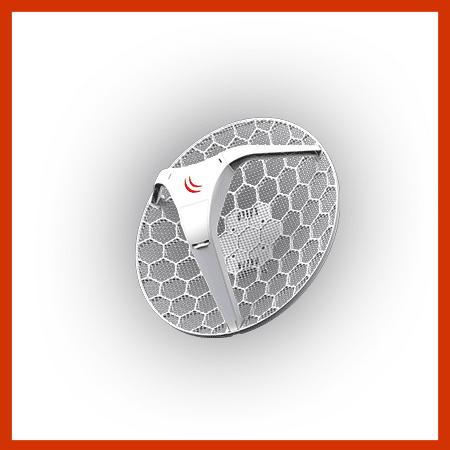

The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna. LHG HP5 comes with two times more output power than our regular LHG 5 – up to 630 mW, and is designed to reach up to 60% longer distances.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
We have two versions available.
LHG HP5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
LHG HP5 (International) supports 5150MHz-5875MHz range.
| Details | |
|---|---|
| Product code | RBLHG-5HPnD |
| 10/100 Ethernet ports | 1 |
| Antenna gain dBi for 5 GHz | 24.5 |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | Ø 391 x 222 mm; |
| License level | 3 |
| Max Power consumption | 7W |
| Number of chains | 2 |
| Operating System | RouterOS |
| PoE in | Passive PoE |
| PoE-IN | 10-28 V |
| Power Jack | 1 |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C .. +70°C |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz standards | 802.11a/n |
