OmniTIK 5 PoE ac

CAD$185.92

Mikrotik 7.5dBi Integrated AP, 5Ghz Dual chain with 802.11ac support, 5x Gigabit Ethernet ports with PoE-out

In stock

SKU: RBOmniTikPG-5HacD Category:

Description

We are glad to introduce a significant upgrade to our popular OmniTik 5GHz access points!

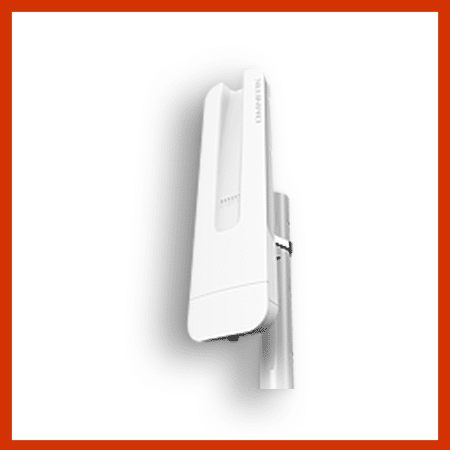

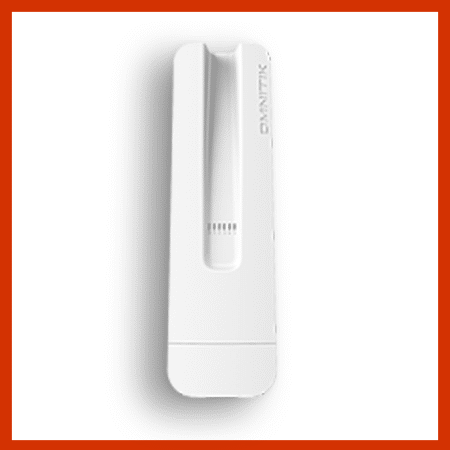

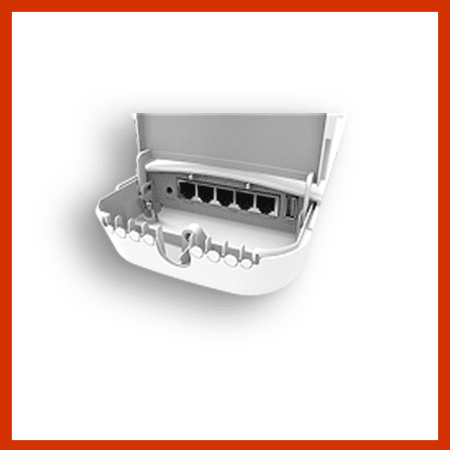

OmniTik 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 1,300mW 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.

It also supports passive or standard 802.3at/af PoE input/output (12v-57v). Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 48V devices (like IP camera), if 48V input is used.

– OmniTIK 5 PoE ac US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

– OmniTIK 5 PoE ac (International) supports 5150MHz-5875MHz range.

Product specifications

Details
Product code RBOmniTikPG-5HacD
CPU nominal frequency 720 MHz
CPU core count 1
Size of RAM 128 MB
10/100/1000 Ethernet ports 5
Wireless standards 802.11a/n/ac
Wireless chip model QCA9892
Number of USB ports 1
PoE in Yes
PoE out 802.3at
Supported input voltage 12 V – 57 V
Voltage Monitor Yes
PCB temperature monitor Yes
Dimensions 416 x 129 x 58 mm
Operating System RouterOS
License level 4
Antenna gain DBI 7.5
CPU QCA9557
Max Power consumption 18W
USB Power Reset Yes
USB slot type USB type A
Number of chains 2
Storage type FLASH
Storage size 16 MB

Additional information

Weight 1.6 kg
Dimensions 8 × 44 × 23 cm
