OPMM-KT-100 Series

CAD$49.71

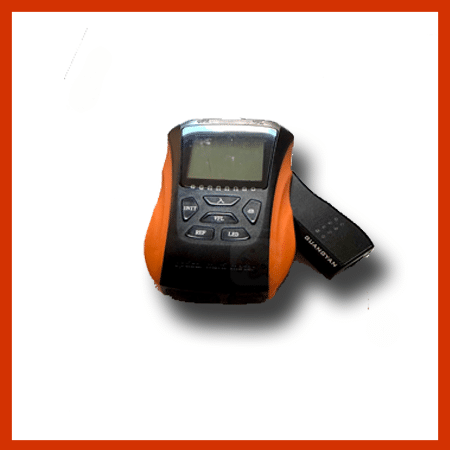

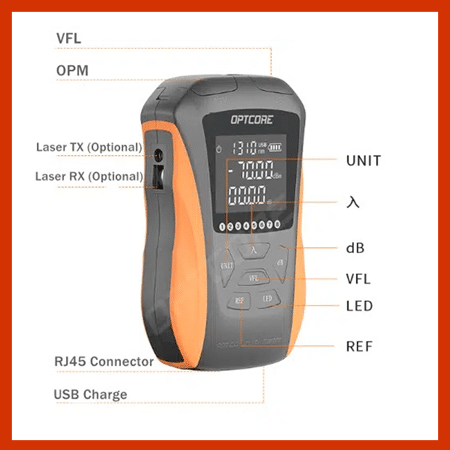

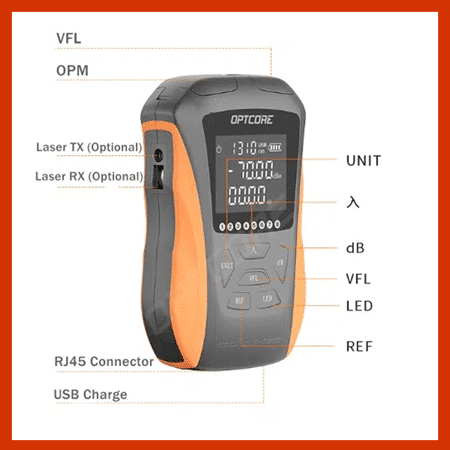

The Optcore OPMM-KT-100 Series handheld Optical Multimeter, All-in-One OPM+VFL+Cable Tester+LED lighting.

  • support for SC, FC, ST interface
  • supports charge saving, computer, and other external power supply
  • support linear (nW) and nonlinear indicators (dB)
  • support RJ45 testing

In stock

SKU: OPMM-KT-100 Categories: ,

Description

Handheld Optical Multimeter

(Optical Power Meter + Visual Fault Locator + Network Cable Tester, 2.5mm Universal Connector for SC/FC/ST). The OPMM-KT-100 Series are handheld optical power multimeter all-in-one tools. They are mainly used for continuous optical signal power measurement, optical fibre link loss, and fibre optic line on-off testing. Controlled with a single microprocessor, it is fully functional. Widely used in fiber optic cable construction and maintenance, fibre optic communication, fibre optic cable sensing, optical CATV, and other fields. The body design conforms to ergonomic requirements, using advanced cold moulding technology, beautiful and durable. The optical power meter red light pen all-in-one machine uses an internal detector and laser, which can be well protected. The optical power meter/all-in-one machine has a compact form factor, automatic switcher function, red light power-adjustable, support laser range file, RJ45 pair and hunt, wavelength memory function, automatic identification of working frequency, support lighting, storage, and other functions.

  • supports lighting
  • supports automatic power-on
  • supports automatic shutdown
  • supports memory wavelength function
  • supports automatic frequency identification
  • supports the user’s own calibration

Specification

  Product Series Optical Multimeter   Optcore Part Number OPMM-100 Series
  OPM Wavelength 850/980/1300/1310/1490/1550/1625nm   Detector InGaAs
  OPM Measurement Range -70 ~ +3dBm / -70 ~ +10dBm / -50 ~ +26dBm   Resolution(dB) Linear display: 0.1% Logarithmic display: 0.01dBm
  OPM Test Accuracy ±0.2dBm   Calibrated Wavelength 850/980/1300/1310/1490/1550/1625nm
  VFL Wavelength 650nm light source   VFL Operation Mode Pulsed (2Hz) and Continuous Wave (CW)
  VFL Output Power 1/5/10/15/20/30mW   Resolution(dB) Linear display: 0.1% Logarithmic display: 0.01dBm
  Connector 2.5mm Universal Connector (SC/FC/ST)   Dimension 190x90x45mm
  Battery type Lithium battery   Battery Life ≥ 48 hours
  Environment Operating: -10°C to 60°C
Storage: -20°C to 70°C
  Weight 0.37 kg

Additional information

Weight 0.3 kg
Dimensions 18 × 10 × 8 cm
