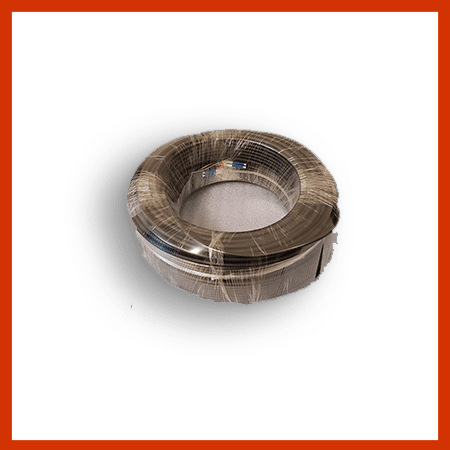

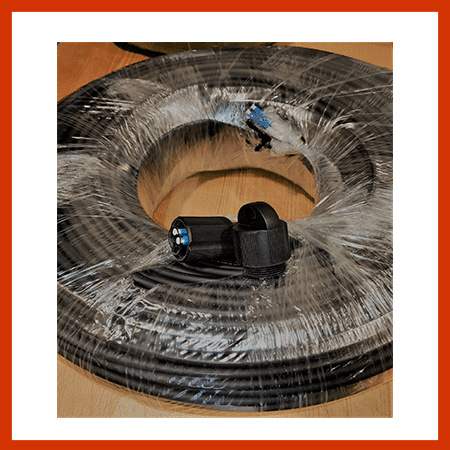

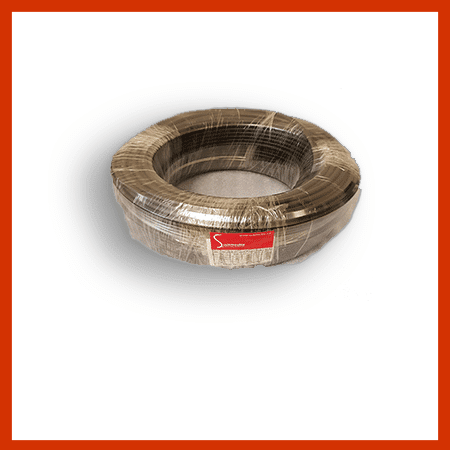

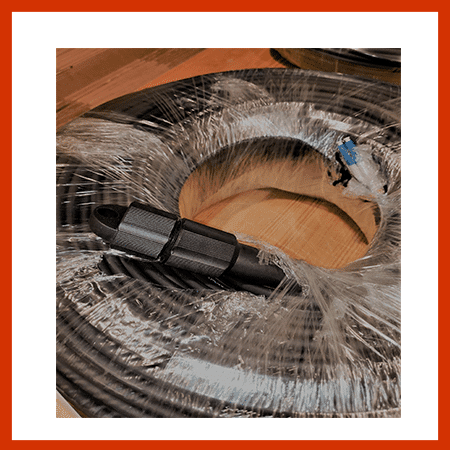

Outdoor Connectorised Optic cable Duplex LC


Armored  CPRI cable (with superb radio frequency protection) Outdoor Spliceless Single-mode Fiber optic cable assembly  DLC/PC,DLC/PC,GYFJH 2A1a(LSZH),70m,7.0mm,2Cores,Outdoor Protected Branch UV protected.

SKU: O/D DLC/PC, SM,GYFJH 2A1a(LSZH) Category:


Many Mikrotik routers now come with a single or multiple SFP cage for fibre connectivity capability. Modern network equipment ustilises the lightning speed of fibre optics which has neither capacity nor distance limits. . The normal CAT5/6 cable presents huge challenges for connections over long outdoor distances (loop limitation) as well as capacity. On top of that the heavy weight, high price of CAT 5/6 is also another negative factor. On the other hand Splicing of fibre cable presents a huge problem. Our Spliceless Fibre Optic Cable module resolves this problem, easily.


DLC Waterproof fibre optic patch cord is standard size
for Duplex LC Connectors, and the outer housing with
metal device;


PDLC Waterproof fibre patch cord is standard size for Duplex LC Connectors, and the outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dustproof. This patch cords widely used in FTTA, Base station, and all outdoor wireless implementations.



1. Standard Duplex LC connector, well connected with standard LC adaptor

2. Available Single mode

3. IP678protection, salt-mist proof, humidity proof, dust proof

4. Aluminum housing, high shock and vibration

5. Broad temperature range and wide range of indoor and outdoor cables

6. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.

7. Easy Operation, reliable and cost-effective installation



1. Widely used in FTTA & FTTH

2. Standard interface specified in 3G,4G

3. Harsh outdoor environments application


Specifications & Performances

Item SM MM
Polishing Type PC UPC APC PC
Insertion Loss ≤0.2dB (Typical ≤0.1dB NA
Return Loss ≤-45dB ≤-55dB ≤-65dB /
Connector Duplex  LC Connector
Durability(500 Mating) 0.2 dB Max. Increase
Operating Temperature -40°C~85°C
Storage Temperature -40°C~85°C

Additional information

Weight 9 kg
Dimensions 38 × 38 × 14 cm
Fiber Length

, , ,
