wAP ax

CAD$124.34

The Mikrotik wAP ax brings fast and reliable Wi-Fi 6 to your outdoor or indoor getaway. The wAP ax is perfect for any challenging environments – like a rural gas station or a bus stop.

  • ARM processor.
  •  802.11ax radios
  • Dual simultaneous bands (5 and 2.4 GHz).

In stock

Description

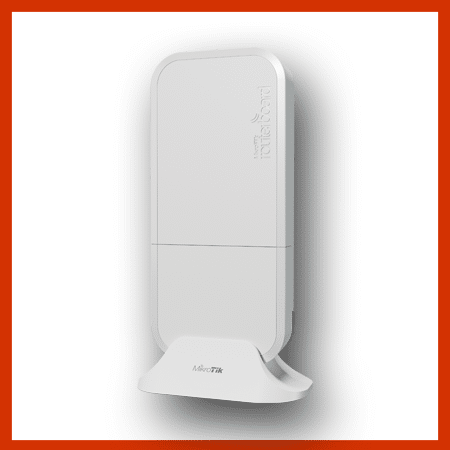

Mikrotik wAP ax

Fast and Reliable Wi-Fi 6 for Challenging Environments

wAP ax brings fast and reliable Wi-Fi 6 to your countryside getaway or any other challenging environments. The  legendary weatherproof form-factor has been tested for several generations all across the globe, and remains a favorite among MikroTik users for its simplicity and durability. Furthermore the mighty dual-band, dual-chain (2×2 MIMO) radio ensures fast and reliable wireless connection both indoors and outdoors.

Wi-Fi 6: More Than Just Speed

No doubt – Wi-Fi 6 is much faster in both 2.4 GHz spectrum (speed increase up to 90%!) and 5 GHz spectrum (up to 40% faster!), but there’s so much more to it. Wi-Fi 6 offers significantly improved energy efficiency and security. OWE/WPA3-PSK/WPA3-EAP encryption and management frame protection help prevent all sorts of attacks, like brute-forcing and De-authentication Attacks.

And, if you have multiple wAP ax devices over a larger area, you’ll enjoy the improved seamless fast transition roaming – your devices will switch to the strongest signal… seamlessly!

Enhanced Hardware for Uninterrupted Connectivity and Simple Management

This compact access point is equipped with a modern dual-core ARM CPU and runs on RouterOS v7, ensuring stable internet and excellent VPN performance across your property. The wAP ax also supports our new CAPsMAN for easy centralized management of multiple devices with just a few clicks.
The device features two Gigabit Ethernet ports, with PoE-in on one for flexible powering options. You can also use the standard DC jack – because we believe in giving you options.

Stealthy Design – Weatherproof and Vandalproof

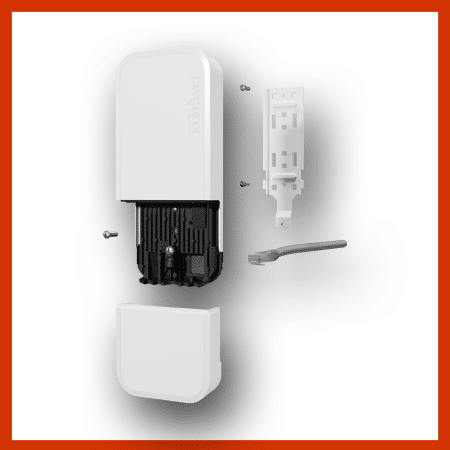

In view of above, wAP ax is designed to blend into any environment. Its simple, elegant design doesn’t attract any unwanted attention, making it perfect for busy public spaces or private properties alike. wAP can be securely fixed to any external wall or roof from the inside of the case.

Specifications

Details
Product code wAPG-5HaxD2HaxD
Architecture ARM
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $89.00

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model IPQ-5010
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 2400 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 7
Wireless 5 GHz chip model QCN-6102
Wireless 5 GHz generation Wi-Fi 6
WiFi speed AX3000

Ethernet

Details
10/100/1000 Ethernet ports 2

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 9 W
Max power consumption without attachments 9 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 54

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Additional information

Weight 0.900 kg
Dimensions 28 × 14 × 10 cm
