mikrotik wap ac white

wAP ac (new white)

CAD$119.74

Mikrotik wAP ac is a small dual-band weatherproof wireless access point for mounting on a pole, wall, or the ceiling. The new revision features 2x Gigabit Ethernet ports, enhanced wireless antenna performance, more RAM, and a powerful quad-core CPU!

  • ARM processor.
  • Dual Band WIFI radio 2.4 and 5GHz.
  • Dual Gig Ethernet port.

In stock

SKU: RBwAPG-5HacD2HnD Category:

Description

Mikrotik wAP ac

The wAP ac is a versatile and robust wireless access point designed to provide reliable internet connectivity in various outdoor settings.

Its weatherproof design ensures durability against environmental elements, making it ideal for gardens, porches, or any outdoor area. The device boasts a powerful quad-core CPU and increased RAM, enhancing its performance capabilities. With dual Gigabit Ethernet ports and improved antenna performance, the wAP ac offers efficient and high-speed connectivity.

The dual-band feature supports both 2.4 GHz and 5 GHz frequencies, allowing for flexible device compatibility and reduced interference in densely populated areas. The 2.4 GHz band caters to older devices, while the 5 GHz band serves newer devices.

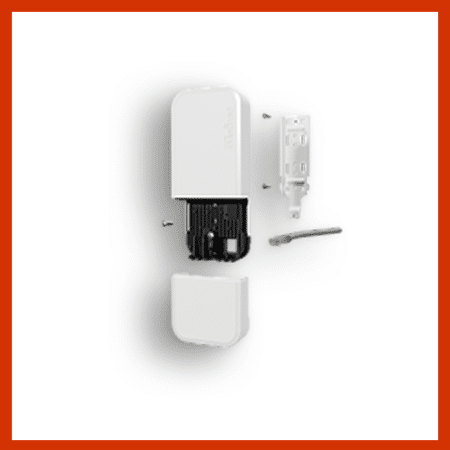

For security, the wAP ac can be securely mounted to an external wall with minimal visibility of attachments, and the anti-vandal screw ensures that only the owner can access Additionally, the discreet cable management through the back of the case allows for a clean and unobtrusive installation, blending seamlessly with the environment.

Available in black and white, the wAP ac offers aesthetic choices to match different exteriors, further emphasizing its user-friendly design.



Specifications

Details
Product code RBwAPG-5HacD2HnD
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
IPsec hardware acceleration Yes
Dimensions 185 x 85 x 30 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5
AC speed AC1200

Ethernet

Details
10/100/1000 Ethernet ports 2

Powering

Details
PoE in 802.3af/at
PoE in input Voltage 18-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-57 V
Max power consumption 10 W
Max power consumption without attachments 9 W
FAN count Passive

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 25 -96
54MBit/s 19 -78
MCS0 25 -96
MCS7 18 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 24 -96
54MBit/s 20 -80
MCS0 24 -96
MCS7 19 -75
MCS9 17 -70



Additional information

Weight 0.7 kg
Dimensions 28 × 13 × 8 cm
